Conventional copper wires are plated with gold, silver, or nickel in a variety of plating thicknesses, and then are film-insulated. At elevated temperatures, these wires can operate for extremely long periods of time, as the plating provides an excellent way to maximize and customize the properties of the conductor, and it is also a relatively inexpensive way to combine the pros of two metals. In addition, the plated design can not only protect the conductor, but also optimize the wires' conductivity, solderability, and overall strength. In this article, we will walk through the pros of silver-plated nickel wire.

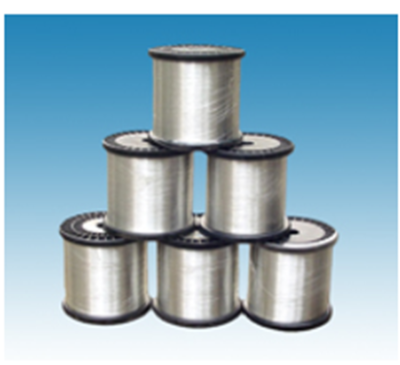

Parameter of Silver Coated Nickel Wire
MODEL | Ni+Co≧ | Cu≤ | Si≤ | Mn≤ | C≤ | S≤ | P≤ | Fe≤ |
N4 | 99.9 | 0.015 | 0.03 | 0.002 | 0.01 | 0.001 | 0.001 | 0.04 |
N6 | 99.5 | 0.06 | 0.1 | 0.05 | 0.1 | 0.005 | 0.002 | 0.1 |
MODEL | Pb≤ | Bi ≤ | As≤ | Sb≤ | Zn≤ | Sn≤ | Cd≤ | Mg≤ |
N4 | 0.001 | 0.001 | 0.001 | 0.001 | 0.005 | 0.001 | 0.001 | 0.01 |
N6 | 0.002 | 0.002 | 0.002 | 0.002 | 0.007 | 0.002 | 0.002 | 0.1 |
● Silver Plated Design
The silver-plated design can provide high conductivity and perfect solderability, which plays an important role in high-frequency applications. Besides, it can increase high-temperature performance and generally improve chemical resistance. Although it may oxidate, the impact on its performance is little. The only thing that you should notice is your budget because its price is relatively high.
● Nickel Plated Design
The nickel-plated design can provide perfect resistance to high temperatures compared to other plating options, and it is resistant to harsh environments and corrosion. What's more, it is harder than other plating designs, and it may need some activated flux.→Find more articles in Horle←
