FIRE RESISTANCE WIRE
TECHNICAL PARAMETER:
Conductor:
350℃: copper, nickel plated copper,pure nickel wire
400℃: nickel plated copper,pure nickel wire
450℃: pure nickel wire
Jacket: sintered fiber glass braided
Structure for different type:
1.Normal type
2.Water-proot type
3.High voltage type
Rated voltage: 500V,600V,1000V,1200V,1500V
Rated temperature: 350℃ 400℃ 450℃
Color: white, blue, red, black, brown,yellow,green etc,Rohs & reach compliance
Using for:Heating light, drying tunnel, drying room, electric heating, Petro chemical, electro mechanical equipment, power plant etc
Conductor:
350℃: copper, nickel plated copper,pure nickel wire
400℃: nickel plated copper,pure nickel wire
450℃: pure nickel wire
Jacket: sintered fiber glass braided
Structure for different type:
1.Normal type
2.Water-proot type
3.High voltage type
Rated voltage: 500V,600V,1000V,1200V,1500V
Rated temperature: 350℃ 400℃ 450℃
Color: white, blue, red, black, brown,yellow,green etc,Rohs & reach compliance
Using for:Heating light, drying tunnel, drying room, electric heating, Petro chemical, electro mechanical equipment, power plant etc
PRODUCT DETAILS:
SPECIAL CHARACTERISITICS:
1.Water proof and high voltage wire is our patent product
2.This wire is easy for stripping for all layer include mica,water proof and fiber glass are not layered.

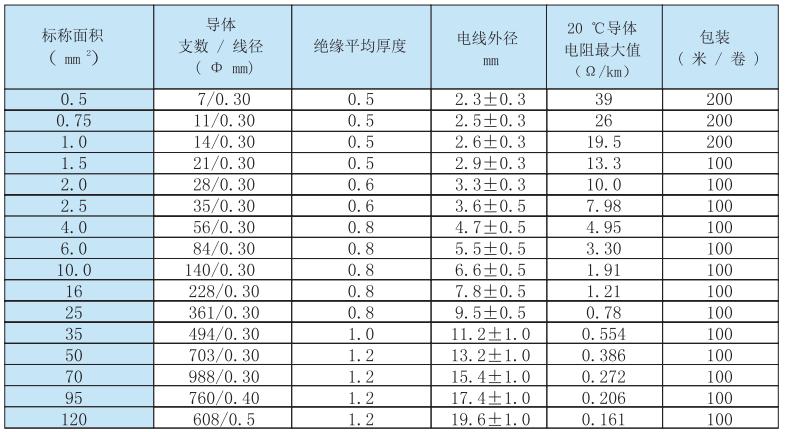

Normal wire list:

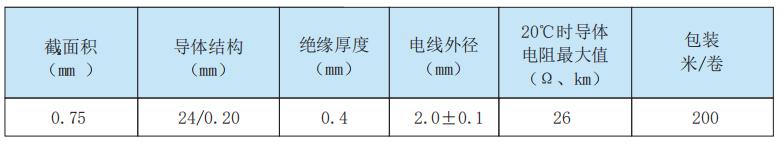

WATER PROOF WIRE LIST:

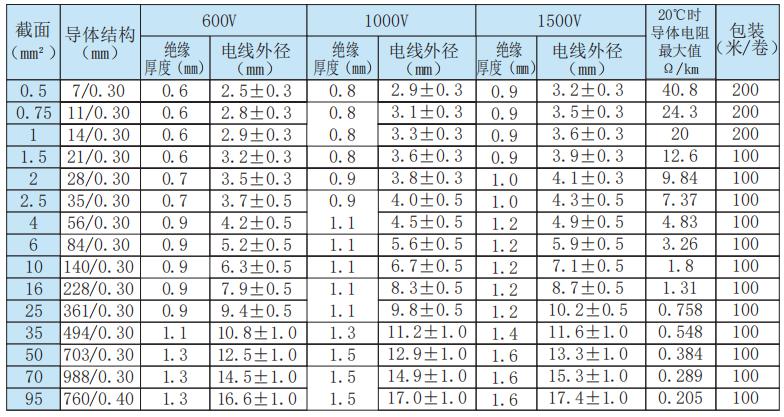

HIGH VOLTAGE WIRE LIST:

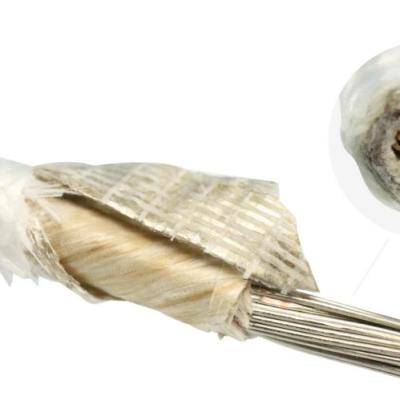

Water-proof fire resistance wire is our factory patented product, it perform a good characteristics in fire prevention and water proof, the highest working voltage rate come to 1500V. And our fire resistance wire also have another special characteristics: stripping easy. Normal fire resistance wire have many insulation layer, each layer is not attache tighten, then it cause stripping one layer insulation but inside another insulation stripping is not cleaning and tidy, our wire all insulation layer ( fiber glass layer, mica layer, water proof layer, fiber glass layer jacket) attached tighten etch other, stripping edge is cleaning and tidy. This wire are widely used for high temperature and fire resistance environment.
FIRE RESISTANCE WIRE
SPECIAL CHARACTERISITICS:
1.Water proof and high voltage wire is our patent product
2.This wire is easy for stripping for all layer include mica,water proof and fiber glass are not layered.
Normal wire list:
(PLEASE NOTE: THESE WIRE STRUCTURE JUST OUR NORMAL WIRE DETAILS, WE ALSO CAN PRODUCE THE WIRE AS PER CUSTOMER SPECIAL DESIGNED )
WATER PROOF WIRE LIST:
(PLEASE NOTE: THESE WIRE STRUCTURE JUST OUR NORMAL WIRE DETAILS, WE ALSO CAN PRODUCE THE WIRE AS PER CUSTOMER SPECIAL DESIGNED )
HIGH VOLTAGE WIRE LIST:
(PLEASE NOTE: THESE WIRE STRUCTURE JUST OUR NORMAL WIRE DETAILS, WE ALSO CAN PRODUCE THE WIRE AS PER CUSTOMER SPECIAL DESIGNED )
Water-proof fire resistance wire is our factory patented product, it perform a good characteristics in fire prevention and water proof, the highest working voltage rate come to 1500V. And our fire resistance wire also have another special characteristics: stripping easy. Normal fire resistance wire have many insulation layer, each layer is not attache tighten, then it cause stripping one layer insulation but inside another insulation stripping is not cleaning and tidy, our wire all insulation layer ( fiber glass layer, mica layer, water proof layer, fiber glass layer jacket) attached tighten etch other, stripping edge is cleaning and tidy. This wire are widely used for high temperature and fire resistance environment.
