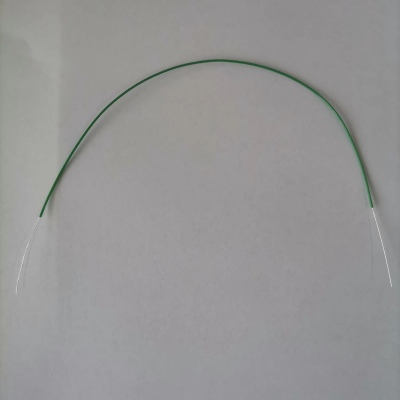

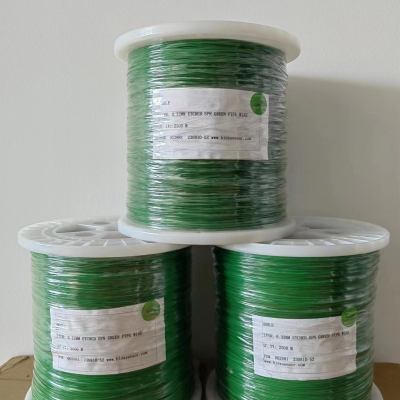

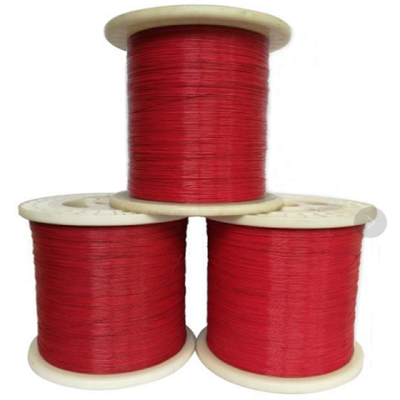

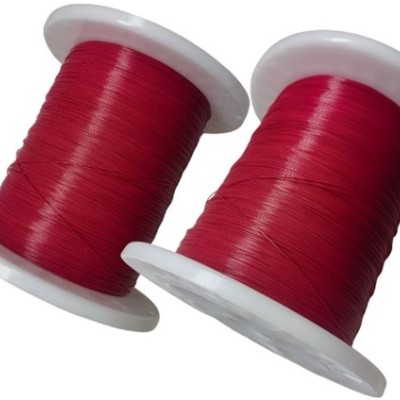

2.1  Etched PTFE Wire

Etched PTFE Wire

Technical Parameter

Conductor: Silver Plated Nickel / Silver Plated Copper / Nickel Plated Copper / Pure Nickel

Conductor Size: ≥0.25mm

Silver Coating Thickness: ≥2μm  SPN conductor

Silver Coating Thickness: ≥1.2μm  SPC conductor

Jacket:  260℃ PTFE

Color: Clear/Red/Green/Black/Yellow/Purple/Brown……

RoHS & REACH Compliance



Wire Characteristics:

  1. Normal PTFE Wire:Normal PTFE wire insulation surface is very smooth. If there is a need to bond PTFE wire to epoxy powder/resin, it will cause the bonding adhesion to be very poor.
  2. Etched PTFE Wire:Our etched PTFE wire is very strong in this field. After the etching process, the PTFE surface becomes rough and full of one - layer small holes. This greatly improves the bonding adhesion strength between the PTFE layer and epoxy powder.

    Microscopic View of Etched PTFE Insulation Layer:PTFE insulation layer surface after etching, as seen under a microscope at 5000 - times enlargement.
