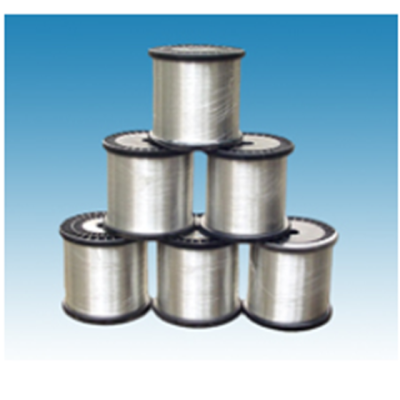

SILVER PLATED NICKEL WIRE
SILVER PLATED NICKEL WIRE TECHNICAL PARAMETER (GB3120):
SIZE (OD): 0.08-2.0MM
NICKEL PURITY:N6 Ni +Co ≧99.50
N4 Ni +Co ≧99.90
silver coating thickness: ≧1.5um
rohs & reach compliance
package: bobbin
silver coated nickel wire special characteristics:
1.silver coating is suitable for high temperature process, and goods for soldering
2. nickel body is suitable for high speed heating transmission
SIZE (OD): 0.08-2.0MM
NICKEL PURITY:N6 Ni +Co ≧99.50
N4 Ni +Co ≧99.90
silver coating thickness: ≧1.5um
rohs & reach compliance
package: bobbin
silver coated nickel wire special characteristics:
1.silver coating is suitable for high temperature process, and goods for soldering
2. nickel body is suitable for high speed heating transmission
SILVER COATED NICKEL WIRE / SILVER PLATED NICKEL WIRE
MAIN PARAMETER FOR NICKEL:
MAIN PARAMETER FOR NICKEL:
|
MODEL
|
Ni+Co
≧ |
Cu
≤ |
Si
≤ |
Mn
≤ |
C
≤ |
S
≤ |
P
≤ |
Fe
≤ |
Pb
≤ |
Bi
≤ |
As
≤ |
Sb
≤ |
Zn
≤ |
Sn
≤ |
Cd
≤ |
Mg
≤ |
|
N4
|
99.9
|
0.015
|
0.03
|
0.002
|
0.01
|
0.001
|
0.001
|
0.04
|
0.001
|
0.001
|
0.001
|
0.001
|
0.005
|
0.001
|
0.001
|
0.01
|
|
N6
|
99.5
|
0.06
|
0.10
|
0.05
|
0.10
|
0.005
|
0.002
|
0.10
|
0.002
|
0.002
|
0.002
|
0.002
|
0.007
|
0.002
|
0.002
|
0.10
|
SILVER COATED NICKEL WIRE / SILVER PLATED NICKEL WIRE
Introducing our premium silver coated nickel wire, the ultimate solution for all your electrical conductivity needs. With its innovative design and superior performance, this high-end wire is set to revolutionize your projects and deliver exceptional results.
Crafted with precision and coated with pure silver, our silver plated nickel wire guarantees optimal conductivity, allowing for seamless transmission of electrical signals. Whether you're working on electronics, circuitry, or any other application that requires reliable and efficient conduction, this wire is your go-to choice.
Experience the remarkable benefits of our silver coated nickel wire firsthand. Its silver plating not only enhances conductivity but also provides excellent corrosion resistance, ensuring your connections remain intact and durable over time. This means reduced maintenance and enhanced longevity for your projects.
The ergonomic design of our silver plated nickel wire ensures hassle-free handling and installation. Its flexibility and durability make it easy to work with, allowing you to maneuver effortlessly and create precise connections. Say goodbye to tangled wires and frustrating installations.
With our silver coated nickel wire, you'll unlock a world of possibilities. Achieve optimum performance in your electronics, maximize efficiency in your circuits, and experience unrivaled precision in your projects.
Upgrade to the pinnacle of electrical conductivity with our silver plated nickel wire today! Enhance your projects, elevate your results, and empower your creativity. Take the first step towards excellence by ordering now and witness the transformative power of our remarkable wire. Get yours today and start creating the future you envision!
Performance of silver plated nickel wire:
1. As silver coating has good soldering strength to chips, this silver coated nickel wire is specially used for high-temperature NTC/SENSOR lead wire, and also can be used for high temperature wire conuctor like ptfe/polyimide wire.
2. The solderability of silver-plated conductors is excellent and while silver may experience some oxidation, silver oxide is a conducting material so the impact on solderability is not significant.
3. Moreover, silver plated nickel wire offers excellent high-temperature lubricity making it a preferred coating for high friction applications.
2. The solderability of silver-plated conductors is excellent and while silver may experience some oxidation, silver oxide is a conducting material so the impact on solderability is not significant.
3. Moreover, silver plated nickel wire offers excellent high-temperature lubricity making it a preferred coating for high friction applications.
Application of silver coated nickel wire:
Our wire and cable conductor including tin plated ,silver plated, nickel plated Copper wire and constantan, for various of applications.
Our wire and cable conductor including tin plated ,silver plated, nickel plated Copper wire and constantan, for various of applications.
What are Advantages of Slilver Plated Nickel Wire/ Silver Coated Nickel Wire?
The conductors and shields of multi-conductor cable are typically manufactured using copper or copper-based alloy as the base metal primarily due to these materials’ high conductivity, good mechanical performance and reasonable cost. While copper-based materials offer numerous benefits as electrical conductors, many applications require properties beyond what non-coated wire can provide. These properties include solderability, temperature range, contact resistance or corrosion, and chemical resistance; therefore, in order to improve one or more of the above properties, conductors are often plated. A variety of metals can be used for plating; however, tin, silver, and nickel are by far the most common.
High Quality SILVER PLATED NICKEL WIRE For Sale
● Tin is the most common coating for copper and copper alloys due to low cost and very good solderability. Improved corrosion and chemical resistance is also an advantage of tin plating (but is dependent upon coating thickness). Tin has a relatively low melting temperature and therefore provides little, if any, improvement to the operating temperature range of copper. Also, tin has relatively low conductivity and, when plated over copper, forms an inter-metallic layer which will increase resistance compared to bare or silver plated wire.
● Silver offers extremely high conductivity and will actually reduce the resistance of plated wire. This is particularly beneficial in high frequency applications because the skin effect will result in increased current flow through the silver. In addition to conductivity, silver plating copper will increase high temperature performance and generally improve chemical resistance. Solderability of silver plated conductors is excellent and while silver may experience some oxidation, silver oxide is a conducting material so the impact on solderability is not significant. While silver plating offers many advantages over tinned or uncoated copper, the added cost is a consideration.
● Nickel is a much harder metal than other common plating options and offers excellent resistance to high temperatures. The operating temperature range increase due to nickel plating depends on the thickness of the plating but is superior to that gained by using silver. Nickel is very resistant to harsh environments and corrosion; however, due to its hardness, soldering can be difficult and requires an activated flux. Crimp termination can be a good option for nickel plated wire, but, because it is a hard material, some adjustments to tooling may be necessary. Conductivity of nickel is relatively low and plating will increase the resistance of wire (much like the impact of tin plating).
HORLE TECHNOLOGY LTD is one of the professional silver plated nickel wire manufacturers in China, and we have in-house plating facilities for tin and silver to meet your specific requirements or to ASTM standards. In addition to those discussed, HORLE Wire has utilized numerous other plating options including gold, chrome . We have extensive experience manufacturing custom wire and cable with plated materials and can work with you to select the appropriate option for your application.
● Silver offers extremely high conductivity and will actually reduce the resistance of plated wire. This is particularly beneficial in high frequency applications because the skin effect will result in increased current flow through the silver. In addition to conductivity, silver plating copper will increase high temperature performance and generally improve chemical resistance. Solderability of silver plated conductors is excellent and while silver may experience some oxidation, silver oxide is a conducting material so the impact on solderability is not significant. While silver plating offers many advantages over tinned or uncoated copper, the added cost is a consideration.
● Nickel is a much harder metal than other common plating options and offers excellent resistance to high temperatures. The operating temperature range increase due to nickel plating depends on the thickness of the plating but is superior to that gained by using silver. Nickel is very resistant to harsh environments and corrosion; however, due to its hardness, soldering can be difficult and requires an activated flux. Crimp termination can be a good option for nickel plated wire, but, because it is a hard material, some adjustments to tooling may be necessary. Conductivity of nickel is relatively low and plating will increase the resistance of wire (much like the impact of tin plating).
HORLE TECHNOLOGY LTD is one of the professional silver plated nickel wire manufacturers in China, and we have in-house plating facilities for tin and silver to meet your specific requirements or to ASTM standards. In addition to those discussed, HORLE Wire has utilized numerous other plating options including gold, chrome . We have extensive experience manufacturing custom wire and cable with plated materials and can work with you to select the appropriate option for your application.
