NICKEL MAGNETIC WIRE

CONDUCTOR:  NI200/N6 NICKEL ( NICKEL PURITY >99.5%)
                         NI201/N4 NICKEL  ( NICKEL PURITY >99.9%)
SIZE: >0.05mm
COATING MATERIAL: POLYESTER,POLYIMIDE,POLYURETHANE ETC
TYPE: SINGLE ONE, BIFILAR, TWIST ETC, AS PER CUSTOMER REQUIREMENTS

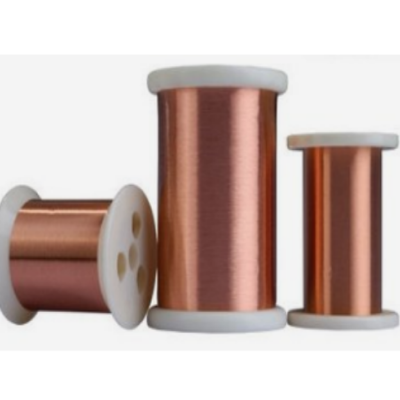

PACKAGE: BOBBIN
ROHS & REACH COMPLIANCE

NICKEL MAGNETIC WIRE IS OUR NEW DEVELOPED PRODUCT, THIS WIRE
ARE WIDELY USED FOR DIFFERENT SENSORS, IT HAVE GOOD HEATING
TRANSMISSION CHARCTERISTICS COMPARE TO OTHER MAGNETIC WIRE


MAIN ELEMENT FOR WIRE BODY MATERIAL NICKEL:
NICKEL MAGNETIC WIRE

MODEL Ni+Co
Cu
Si
Mn
C
S
P
Fe
Pb
Bi
As
Sb
Zn
Sn
Cd
Mg
N4 99.9 0.015 0.03 0.002 0.01 0.001 0.001 0.04 0.001 0.001 0.001 0.001 0.005 0.001 0.001 0.01
N6 99.5 0.06 0.10 0.05 0.10 0.005 0.002 0.10 0.002 0.002 0.002 0.002 0.007 0.002 0.002 0.10

COATING MATERIAL: ISONEL 200 or others
WIRE DIAMETER:  >0.05mm

INSULATION TEST LEAKAGE: THIS WIRE INSULATION WITHSTAND 100VDC IN A 0.9% NACI SOLUTION
(NORMAL SALINE), WITH A MAXIMUM LEAKAGE CURRENT OF 2 MICROAMPS (0.000002A).

DIELECTRIC WITHSTAND:  MINIMUM BREAKDOWN VOLTAGE =2150V (DRY)
COATING: INSULATION  OATING WAS CURED, FREE FROM BUBBLES, SOFT SPOTS AND SHALL NOT
SEPERATE FROM INSULATION WHEN PULLED APART AND WILL REMAIN BONDED IN A NORMAL
HANDLING.

WIRE INSPECTION:  MATERIAL COMPOSITION (NICKEL CONTENT
                                 ULTIMATE STENSILE STRENTH AND ELONGATION
                                 WIRE OD
                                 RESISTANCE
