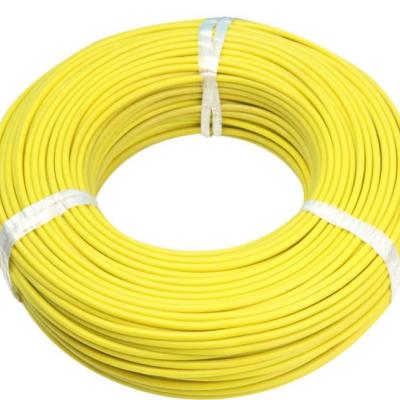

ODORLESS SILICON WIRE
TECHNICAL PARMATER:
Insulation: odorless silicon
Conductor: copper,tin coated copper,silver plated copper,nickel plated copper
Rated temperature: -60℃-180℃
Rated voltage:300/500V
Wire size (OD): 1.2mm - 33mm(include multi core wire)
Wire color: white,blue, red, black,brown,yellow,Green,transparent,etc,Rohs & reach compliance
Using for: motor,electronic ceramic parts,heating part,Automotive light,lights,others
Insulation: odorless silicon
Conductor: copper,tin coated copper,silver plated copper,nickel plated copper
Rated temperature: -60℃-180℃
Rated voltage:300/500V
Wire size (OD): 1.2mm - 33mm(include multi core wire)
Wire color: white,blue, red, black,brown,yellow,Green,transparent,etc,Rohs & reach compliance
Using for: motor,electronic ceramic parts,heating part,Automotive light,lights,others
PRODUCT DETAILS：
1.halogen free (not low halogen), our wire are full halogen free.
2.Surface no adhesion to dust: this wire surface was made special treatment,it do not have normal silicon characteristics “adhesion”, it do not attach to dust, and Silicon is odorless.
3.And for multi-layer wire, the silicon jacket do not attached to inner wire insulation material.
4.This wire have normal and soft 2 type, can be provided as per customer requirements.
5.We can provide single core and multi core wire as per customer requirements, And also can produce wire as per customer designed structure except below sheet structure
6.Rohs & reach compliance

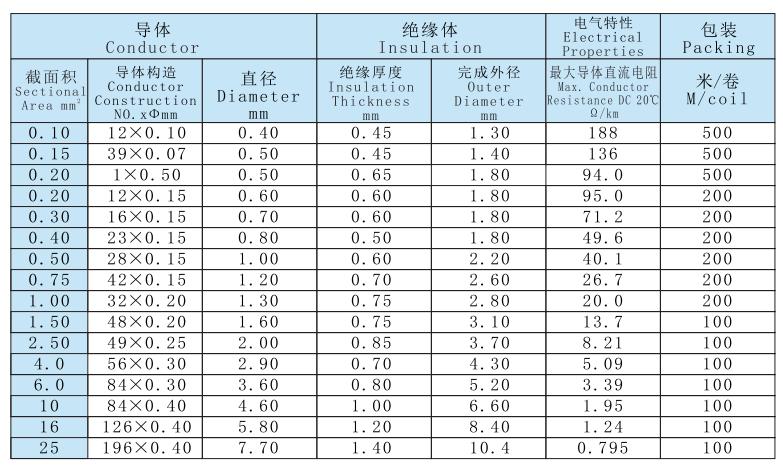

SINGLE CORE WIRE LIST:

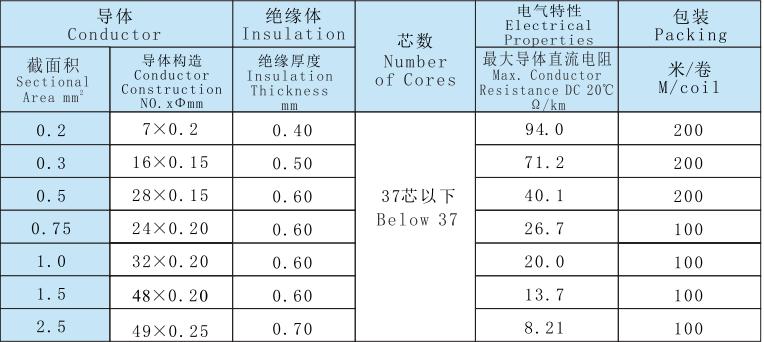

MULTI CORE WIRE LIST:
odorless silicon wire
Compare to normal silicon wire, odorless silicon wire have a special characteristics: the insulation silicon surface no adhesion to dust, so this wire can be kept very clearing for special using. And more is if we produce multi-layer wire, the inner wire insulation silicon layer will not be adhesion to jacket silicon layer, it is good for wire stripping. One more characteristics for this wire is: insulation silicon is without halogen (not low halogen), it is more environment friendly compare to halogen/low halogen silicon wire.
1.halogen free (not low halogen), our wire are full halogen free.
2.Surface no adhesion to dust: this wire surface was made special treatment,it do not have normal silicon characteristics “adhesion”, it do not attach to dust, and Silicon is odorless.
3.And for multi-layer wire, the silicon jacket do not attached to inner wire insulation material.
4.This wire have normal and soft 2 type, can be provided as per customer requirements.
5.We can provide single core and multi core wire as per customer requirements, And also can produce wire as per customer designed structure except below sheet structure
6.Rohs & reach compliance
SINGLE CORE WIRE LIST:
(PLEASE NOTE: THESE WIRE STRUCTURE JUST OUR NORMAL WIRE DETAILS, WE ALSO CAN PRODUCE THE WIRE AS PER CUSTOMER SPECIAL DESIGNED .)

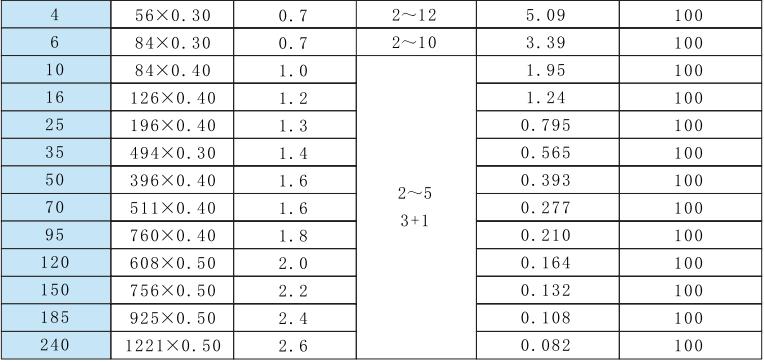

MULTI CORE WIRE LIST:
(PLEASE NOTE: THESE WIRE STRUCTURE JUST OUR NORMAL WIRE DETAILS, WE ALSO CAN PRODUCE THE WIRE AS PER CUSTOMER SPECIAL DESIGNED ， AND INNER WIRE IS SILICON WIRE OR TEFLON WIRE)
odorless silicon wire
Compare to normal silicon wire, odorless silicon wire have a special characteristics: the insulation silicon surface no adhesion to dust, so this wire can be kept very clearing for special using. And more is if we produce multi-layer wire, the inner wire insulation silicon layer will not be adhesion to jacket silicon layer, it is good for wire stripping. One more characteristics for this wire is: insulation silicon is without halogen (not low halogen), it is more environment friendly compare to halogen/low halogen silicon wire.
