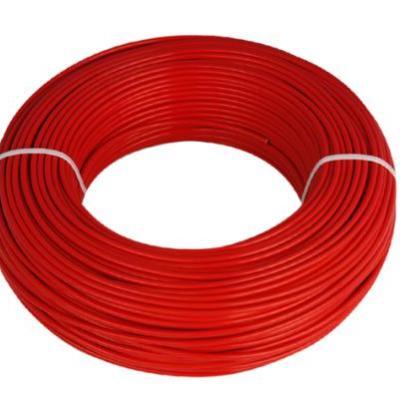

PEEK WIRE
Conductor: silver plated copper,Nickel plated copper
Insulation: peek
Rated voltage: 600V
Rated temperature: -60℃-250℃
Wire OD: 0.85- 7.80mm
Wire Color: white,blue, red, black,brown,yellow,green,transparent,etc,Rohs & reach compliance
Using for : high grade machine,chemical industry,Aerospace,nuclear industry,rail transit etc
Parameter of peek wire:
(PLEASE NOTE: THESE WIRE STRUCTURE JUST OUR NORMAL WIRE DETAILS, WE ALSO CAN PRODUCE THE WIRE AS PER CUSTOMER SPECIAL DESIGNED .)
![](http://v4-upload.goalsites.com/446/1608859993_PEEK WIRE2.jpg)

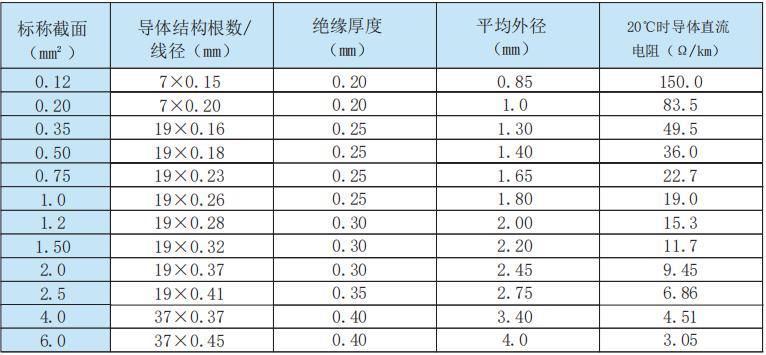

SINGLE CORE WIRE LIST:
(PLEASE NOTE: THESE WIRE STRUCTURE JUST OUR NORMAL WIRE DETAILS, WE ALSO CAN PRODUCE THE WIRE AS PER CUSTOMER SPECIAL DESIGNED .)
![](http://v4-upload.goalsites.com/446/1608860014_PEEK WIRE3.jpg)

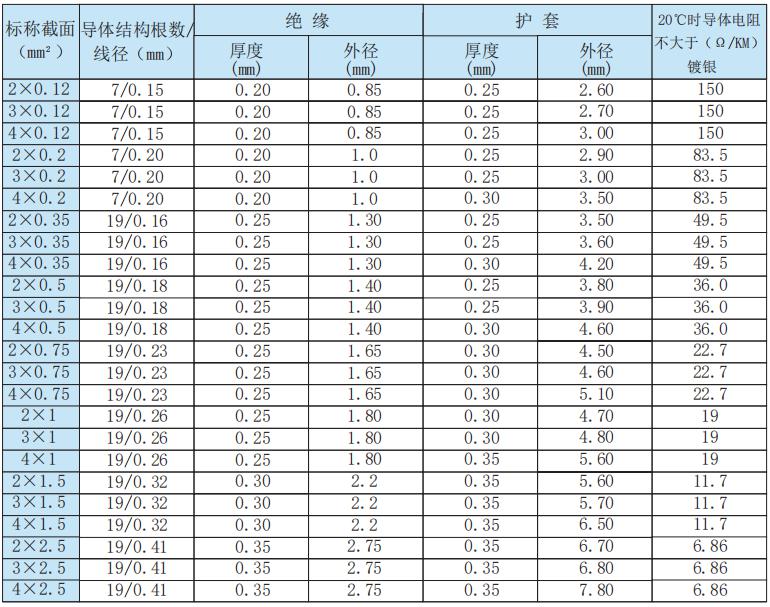

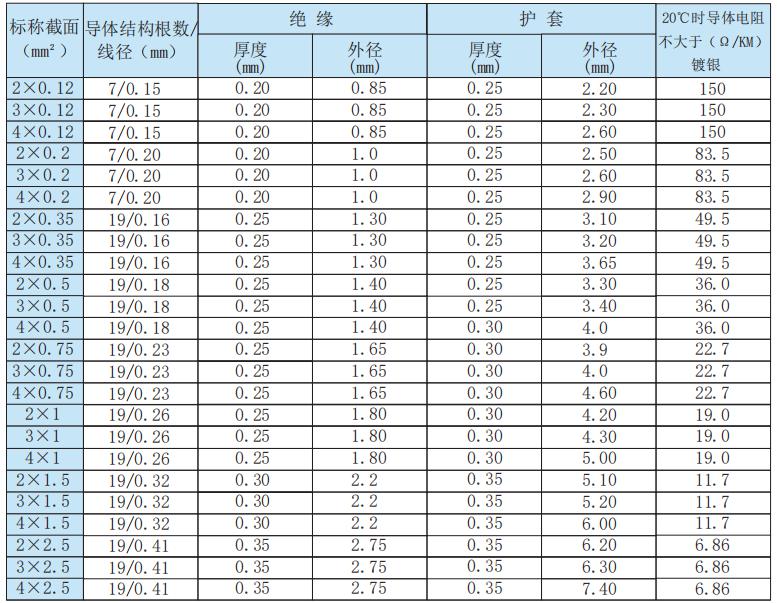

MULTI CORE WITH SHIELD LAYER WIRE LIST:
(PLEASE NOTE: THESE WIRE STRUCTURE JUST OUR NORMAL WIRE DETAILS, WE ALSO CAN PRODUCE THE WIRE AS PER CUSTOMER SPECIAL DESIGNED )
![](http://v4-upload.goalsites.com/446/1608860094_PEEK WIRE4.jpg)
Peek is a special material can be used very special hard environment, such as high temperature, radiation,high humidity, corrosion etch environments, so this peek wire are widely use for nuclear power plant,aerospace, high temperature equipment, temperature sensors etc field, peek wire can provide a good working condition for these requirements.
peek wire
At HORLE, we will custom manufacture PEEK Wire to meet the specific requirements of your application. Our extensive experience and expertise in custom designing PEEK Wire products, along with our broader expertise with the full spectrum of custom wire and cable products, enables us to provide you with superb quality high temperature wire and PEEK Wire that satisfies the critical needs of your application.
Radiation Resistant Wire and Cable
Ordinary thermoplastic insulation becomes brittle when exposed to radiation. Wire protected by PEEK resists even high doses of ionizing radiation, performing much better than PTFE and FEP cable coverings. Systems will custom manufacture this radiation resistant wire for your specific application.Chemical Resistant Wire and Cable
PEEK Insulated Wire also exhibits a high level of resistance to harsh chemical environments. In the downhole oil industry, chemical resistant cable and chemical resistant wire is crucial and the use of PEEK Wire has become common. PEEK Wire also withstands operating temperatures up to 260 °C, and retains its properties in high pressure and moisture laden environments.HORLE can custom manufacture PEEK Wire in dimensions ranging from AWG 40 to AWG 8. The minimum order for PEEK Wire is generally 1000 ft.
At HORLE, we can work with your project engineers to ensure the demands of your job are met in the most efficient and cost-effective manner possible.
