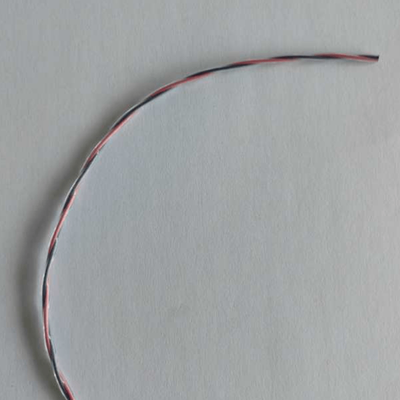

Understanding CMP FT6 FEP Wire
CMP FT6 FEP wire is a high-performance wire designed for use in demanding environments. It features a conductor made of tin-plated copper or pure copper, providing excellent conductivity. The insulation is made from Plenum FEP (fluorinated ethylene propylene), known for its high-temperature resistance and flame retardancy. The wire is rated for a voltage of 300V and temperatures up to 150°C, making it suitable for various applications.Additionally, CMP FT6 FEP wire meets stringent safety standards, including UL approval and RoHS & REACH compliance. Its structure can vary from 2-core to multi-core configurations, and it is available in multiple colors like red, black, white, green, and grey. These features make it a versatile choice for complex electrical installations.
Comparison with Traditional Wires
Traditional wires, often made from materials like PVC (polyvinyl chloride) for insulation, differ significantly from CMP FT6 FEP wires. PVC-insulated wires typically have lower temperature and flame retardancy ratings. For instance, while CMP FT6 FEP wire can withstand temperatures up to 150°C, traditional PVC wires are generally rated for lower temperatures.In terms of safety, CMP FT6 FEP wire excels due to its superior flame retardancy. In the event of a fire, CMP FT6 FEP wire can limit the spread of flames to less than 5 feet and reduce the optical density of smoke. This is a critical feature for installations in areas where fire safety is paramount, such as in ventilation ducts or above suspended ceilings.
Performance-wise, CMP FT6 FEP wire is more reliable in harsh environments. Its insulation material, FEP, is resistant to chemicals, moisture, and high temperatures, unlike traditional PVC, which can degrade over time under such conditions.
Advantages of CMP FT6 FEP Wire
The primary advantage of CMP FT6 FEP wire is its enhanced safety. Its high flame retardancy and ability to limit smoke production make it ideal for use in areas with stringent fire safety requirements. This is particularly important in commercial and industrial settings where fire hazards need to be minimized.Another significant benefit is its superior performance in high-temperature environments. CMP FT6 FEP wire can operate efficiently at temperatures up to 150°C, ensuring reliability and durability in challenging conditions. This makes it suitable for use in spaces with high ambient temperatures or where heat generation is a concern.
Moreover, CMP FT6 FEP wire complies with various industry standards, including UL approval and RoHS & REACH compliance. This ensures that the wire meets high safety and environmental standards, making it a trustworthy choice for critical applications.
Applications of CMP FT6 FEP Wire
CMP FT6 FEP wire is widely used in air return pressurization systems, ventilation ducts, and air handling equipment due to its flame retardancy and smoke-limiting properties. In the event of a fire, these wires help contain the spread of flames and reduce smoke, providing additional safety to building occupants.The wire is also suitable for installation in pipelines, pressurized spaces, and areas with ambient air circulation, such as above elevated floors or suspended ceilings. Its ability to withstand harsh environmental conditions makes it an excellent choice for these applications, ensuring long-term reliability and safety.
Conclusion
In summary, CMP FT6 FEP wire offers numerous advantages over traditional wires, particularly in terms of safety, performance, and compliance with industry standards. Its high flame retardancy, superior performance in high-temperature environments, and versatility in various applications make it an excellent choice for demanding electrical installations.For projects where safety and reliability are paramount, CMP FT6 FEP wire is a better option than traditional wires. If you are looking for high-performing and reliable CMP FT6 FEP wires for your next project, please feel free to contact Horle!
