Tin-coated nickel PFA wire is a specialized electrical wire widely used in high-performance electronics, aerospace, and industrial applications. Combining the corrosion resistance of tin, the strength and conductivity of nickel, and the insulating properties of PFA (perfluoroalkoxy), this wire provides a reliable solution for demanding environments where durability, precision, and safety are critical.

This article explores the properties, applications, and benefits of tin-coated nickel PFA wire, offering a clear understanding for engineers, manufacturers, and procurement specialists looking for high-quality wire solutions.

Composition and Structure

Tin-coated nickel PFA wire consists of three main components:

1. Nickel Core: The central conductor is made from high-purity nickel, known for its excellent thermal resistance, electrical conductivity, and mechanical strength. Nickel maintains performance in high-temperature environments where standard copper wires might fail.

1. Tin Coating: A thin layer of tin is electroplated on the nickel core. This coating enhances solderability and prevents oxidation, which is crucial for long-term reliability in electrical connections. Tin also reduces contact resistance, ensuring stable current flow even in harsh conditions.

1. PFA Insulation: The outer layer of perfluoroalkoxy (PFA) offers exceptional chemical resistance, high thermal stability, and electrical insulation. PFA insulation can withstand temperatures up to 260°C while maintaining flexibility, making the wire suitable for complex assemblies and compact spaces.

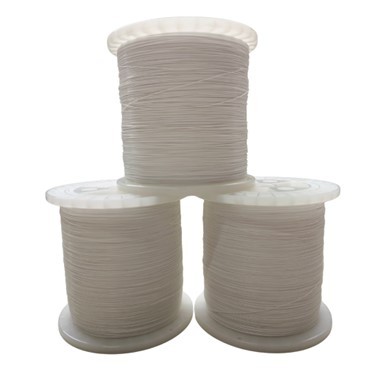

Tin Coated Nickel PFA Wire

Key Properties

Tin-coated nickel PFA wire offers a unique combination of properties that set it apart from conventional wires:

• High Corrosion Resistance: The tin coating protects the nickel core from oxidation and corrosion, making it ideal for environments exposed to moisture, chemicals, or extreme temperatures.
• Excellent Thermal Stability: Nickel maintains structural integrity under high heat, and PFA insulation can withstand repeated thermal cycling without degradation.
• Low Electrical Resistance: Nickel’s conductivity ensures minimal energy loss, and the tin layer enhances soldering performance for secure connections.
• Mechanical Strength and Flexibility: The wire maintains strength under mechanical stress while remaining flexible enough for intricate routing in electronic devices.
• Chemical Resistance: PFA insulation resists acids, bases, solvents, and oils, enabling reliable performance in industrial applications.

Applications of Tin-Coated Nickel PFA Wire

Tin-coated nickel PFA wire is widely used across industries that require high reliability, precision, and durability. Some common applications include:

1. Aerospace and Aviation: Wiring in aircraft often faces extreme temperatures, vibrations, and exposure to corrosive substances. Tin-coated nickel PFA wire ensures safe and reliable signal and power transmission in these conditions.
2. Electronics and Semiconductors: Sensitive electronic devices, circuit boards, and semiconductors benefit from the wire’s low resistance, thermal stability, and chemical resistance. Tin coating ensures easy soldering and reduces failure risk.
3. Industrial Equipment: High-temperature machinery, chemical processing units, and control systems require wiring that can endure harsh environments. This wire provides durability, longevity, and stable electrical performance.
4. Medical Devices: Precision and reliability are crucial in medical instruments and equipment. The wire’s resistance to heat, chemicals, and mechanical stress makes it suitable for internal wiring of diagnostic machines and surgical instruments.
5. Automotive Applications: In electric and hybrid vehicles, tin-coated nickel PFA wire is used for battery connections, sensors, and control systems due to its thermal stability and corrosion resistance.

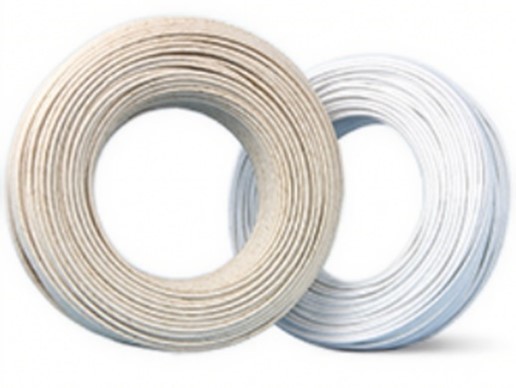

Tin Coated Nickel PFA Wire Supplier

Advantages Over Other Wires

Compared to copper or other metal wires, tin-coated nickel PFA wire offers several advantages:

• Extended Lifespan: The tin coating protects against corrosion, and PFA insulation resists thermal and chemical damage, reducing the need for frequent replacements.
• High-Temperature Operation: Maintains functionality at temperatures that would degrade standard wires.
• Ease of Soldering: The tin layer improves solder adhesion, making assembly and repair easier.
• Resistance to Harsh Chemicals: PFA insulation ensures the wire performs well in industrial and chemical environments.
• Reliable Performance in Critical Applications: Combines mechanical strength, electrical stability, and environmental resistance, making it a preferred choice for mission-critical systems.

Choosing the Right Tin-Coated Nickel PFA Wire

Selecting the appropriate wire depends on several factors:

• Diameter and Gauge: Ensure the wire can handle the required current without excessive heating.
• Temperature Range: Consider maximum operating temperatures of both the conductor and insulation.
• Environmental Conditions: Assess exposure to chemicals, moisture, or mechanical stress.
• Compliance Requirements: Certain applications may require certifications for aerospace, medical, or industrial standards.

Working with a reputable supplier ensures access to consistent quality, technical support, and customization options for specific applications.

Conclusion

Tin-coated nickel PFA wire is a high-performance, reliable solution for demanding electrical and industrial applications. Its combination of corrosion resistance, thermal stability, mechanical strength, and chemical resilience makes it suitable for aerospace, electronics, medical devices, and industrial machinery.

For businesses seeking premium tin-coated nickel PFA wire solutions, Horle provides high-quality products with consistent performance and global support. Explore our range of tin-coated nickel PFA wires to meet your precise application needs and ensure long-lasting, reliable results.
